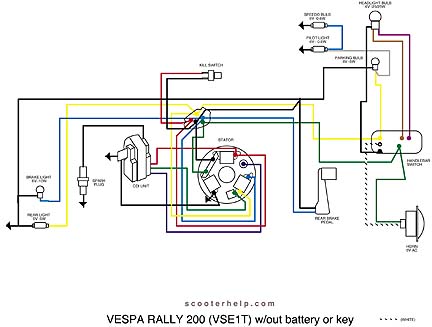

Electrical Diagram VSE1T (electronic)

click image to download a .pdf file

[no key or battery][with key - no battery][with key and battery]

[USA -Femsatronic with key/battery/indicators-before 1977][USA-Ducati with key/battery/indicators-after 1977]
